Vertical Form Fill & Seal Machine

Short Description:

Low Price

Up to 60 Bags/Min

VFFS is a small and economic VFFS single-lane stickpack or sachet packing machine that forms, fills, and seals pouches and sachets in one automatic process. Three models of these machines are suitable for powders, liquid. paste, grain, or granular products. The machine can be customized to make 4-side seal sachets, 3-side sea sachets, back-sealed stickpacks, and shaped bags to suit your individual needs. The stickpacks can be of zagged edges or plain cut or can have smart-looking shaped cut with a tear-notch.


Product Detail

Product Tags

Product Specifications

Parameters 300P 300G 300L
Material  Body: SS304 (Stainless Steel) SS316 Option Body: SS304 (Stainless Steel)SS316 Option Body: SS304 (Stainless Steel), SS316 Option
MeasuringTechnology Auger Filler for Powder Packing Volumetric Cup Filler for Granular Item Packing Piston Pump Filler for Liquid Packing
ControllerTechnology Programmable Logic Controller (PLC) & HMI Touch Screen Programmable Logic Controller (PLC) & HMI Touch Screen Programmable Logic Controller (PLC) & HMI Touch Screen
Bag Type Back Sealed Stickpack, ThreeSide-Seal or Four-Side-Seal Bag Options Back Sealed Stickpack, ThreeSide-Seal or Four-Side-Seal BagOptions Back Sealed Stickpack, ThreeSide-Seal or Four-Side-Seal BagOptions
Filling Range 0~50 mL 0~50 mL 0~50 mL
Bag Length 50~230 mm 50~230 mm 50~230 mm
Bag Width 30~120 mm (One size within this range to be fixed) 30~120 mm (One size within this range to be fixed) 30~120 mm (One size within this range to be fixed)
Packaging Film Laminated Film, OPP/CPP,OPP/CE, PET/PE, NILO/PE, PE Laminated Film, OPP/CPP,OPP/CE, PET/PE, NILO/PE, PE Laminated Film, OPP/CPP,OPP/CE, PET/PE, NILO/PE, PE
Packing Speed 30 - 40 bags/min 30 - 40 bags/min 30 - 40 bags/min
Filling Accuracy ±1 ~2% Depending on Packet Size ±1 ~2% Depending on Packet Size ±1 ~2% Depending on Packet Size
Power & Supply Voltage 1.5 kW, 220V,50/60Hz 1.5 kW, 220V,50/60Hz 1.5 kW, 220V,50/60Hz
Crate Dimensions(LxWxH) 1100mmx 1000mm x 2000mm 1100mmx 1000mm x 2000mm 1100mmx 1000mm x 2000mm
Gross Weight 300kg 300kg 300kg
Net Weight 250kg 250kg 250kg

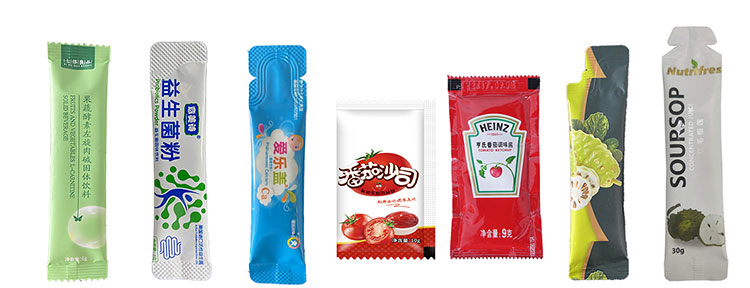

bag type

This single-lane granular and free-flowing powder packing stickpack machine can be customized to produce back-sealed stickpacks, shaped stickpacks, and 3-side and 4-side sealed sachets.

未标题-1

Fintelligent

Filler Options

Auger Filler (for powder products)
Volumetric Cup Filler (for grains)
Tablet Counting Filler (for tablets)
Piston Pump Filler (for liquid products)

Standards
In accordance with CE Standards

Optional Equipment
Screw elevator/conveyor for automatic continuous feeding of powder products
Z-bucket elevator for automatic continuous feeding of granular products
Agitator/mixer for liquid or paste products
Product counter and stacking belt conveyor
Extra filler equipment for different powder, granular, liquid, or part type products packaging in a single machine. The choices are: volumetric cup filler, multi-head weigher, piston pump filler, auger filler, tablet counting filler, and vibrating filler

Product Specifications

Number

name

quantity

1 Tool box

1

2 Allen key

1set

3 Open spanner

1set

4 Iron brush

1

5 Philips screwdriver

1

6 slotted screwdriver

1
