24 Heads Multihead Weigher With Memory Bucket

Short Description:

The three layers 24 heads multihead weigher has a new memory bucket, which can realize temporary storage of weighing materials, increase combination probability, and effectively improve the accuracy of the combination weighing scale. The single machine with separate main vibration disc can realize up to six kinds of mixture formula application, and the maximum weighing speed can achieve 240 bags/minutes, effectively improving economic benefits.

Send email to us

Product Detail

Product Tags

Product Specifications

Model	A24
Weighing Range	12-1000g
Accuracy	X(0.5)
Max Speed	60*4P/M
Hopper Volume	0.5L
Control Panel	10.1” Touch Screen
Options	Dimple Plate/Timing Hooper/Printer/Reject Device
Driving System	Step Motor
Power Requirement	110/220V/2800W/ 50/60Hz /13A
Packing Dimension(mm)	2100(L)X1480(W)X1130(H)
Gross Weight	650kg

Application

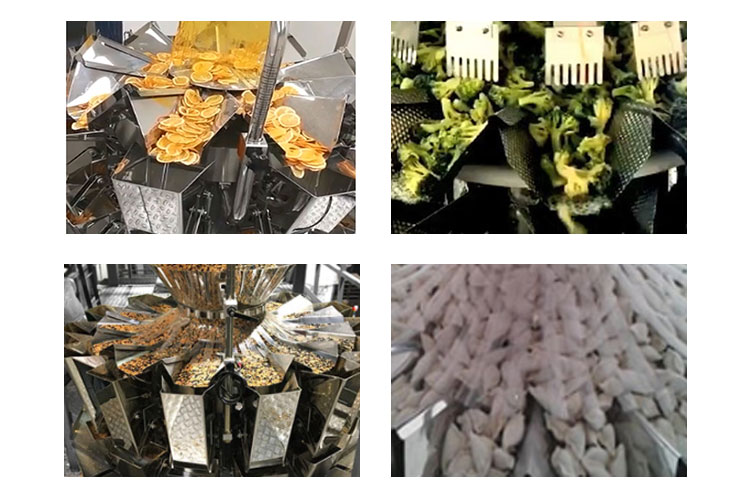

Multihead Weigher is suitable for weighing grain, stick, slice, globose, irregular shape products such as candy, chocolate, jelly, pasta, melon seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips, raisins, plum, cereals and other leisure foods, pet food, puffed food, vegetable, dehydrated vegetables, fruits, seafood, frozen food, small hardware...

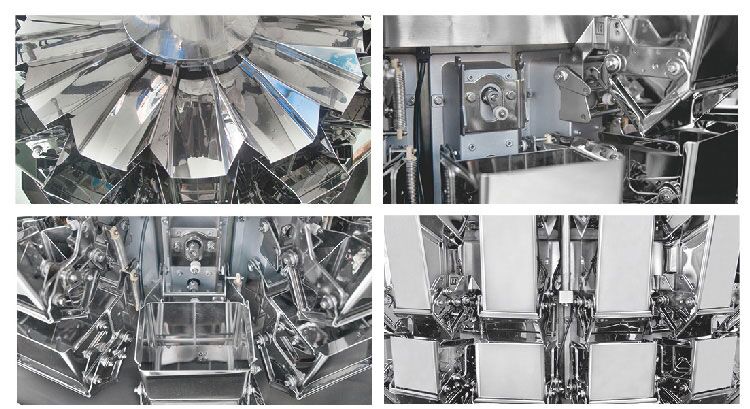

Machine Detail

1. 1.6L/2.5L hopper, suitable for all kinds of common standard materials, and a wide range of applications.
2. 7-inch touch screen, to meet the needs of users.
3. The double support of the feeding tray is easy to adjust, and the lower hopper is easy to disassemble, which is more convenient and clean.
4. Simplified European style chassis, to ensure the stability of the structure of the whole machine, the appearance of more
harmonious and beautiful.
5. Unified design standards, the use of mold production process, so that each part of the interchangeability is stronger.
6. Integral chassis and middle seat enhance the strength of the machine, making the hopper stable time shorter.
