Ready-To-Eat Food| Instant Meat

Short Description:

Ready-to-eat food product pouch packing machine is equipped with bowl elevator as the filling system and Rotary Packing Machine as the packing system, it is widely applied to pack instant food, such as instant meat, instant porridge, instant soup, instant noodles and so on. Suitable bag types: Flat pouch, Standup pouches or doypacks.


Product Detail

Product Tags

Product Application

Ready-to-eat food product pouch packing machine is equipped with bowl elevator as the filling system and Rotary Packing Machine as the packing system, it is widely applied to pack instant food, such as instant meat, instant porridge, instant soup, instant noodles and so on. Suitable bag types: Flat pouch, Standup pouches or doypacks.

application
application
application
application
application

Packaging Solutions

11

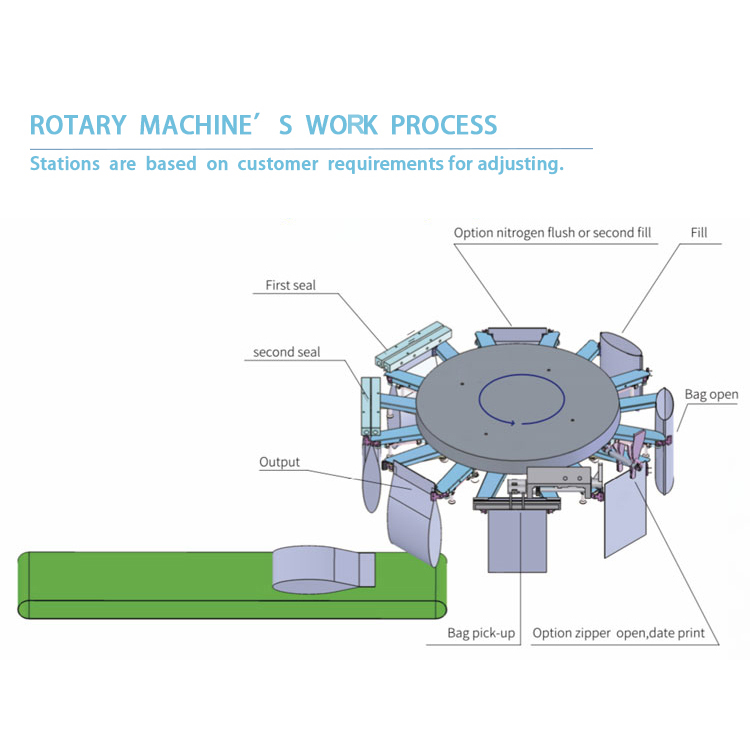

Machine working process

1. Bag Feeding
2. Optional Zipper open and Date print
3. Bag mouth and bottom open
4. Product fill
5. Option: Solid: Nitrogen charge, Powder: Bag mouth clean, Liquid: Secondary filling
6. Heat sealing
7. Heat sealing
8. Output

5

Machine Advantage

✔ With a device can against sealing vacant pouches to make sure that if there is no fill, there will be no seal.

✔ Patented gripper system

✔ Maximum precision

✔ Flexible pouch type: stand-up pouches with zipper or corner spouts, quad pouches, and pouches with customers’ design.

✔ Flexible production speed 15-90 pouches/min.

✔ Long work time and a lifetime can work 24 hours a day, with only one day off for monthly maintenance.

✔ Easy to operate and maintain, one person is enough.

✔ Easy conversion with different scales, fillers, and pumps.

✔ High profitability can replace at least 7 workers for packaging.

✔ Low energy and maintenance costs, only a few spare parts need to change.

✔ Fast delivery of spare parts, for example, max 3 normal days to reach you.

Product Specifications

Power supply 380v 3phase 50Hz
Compressed air about 5~8kgf/cm²,0.4m³/min
Drive method Cam
Fill station 2
sealing style straight/net type
Workstation 8/10 station
Min bag width 80mm
Max bag width 305mm
Noise from running machine within 75db
